The Intel 8085 Processor (1976)
| by: burt rosenberg |
| at: university of miami |
| update: 11 sept 2019 |
| 30 aug 2024 |

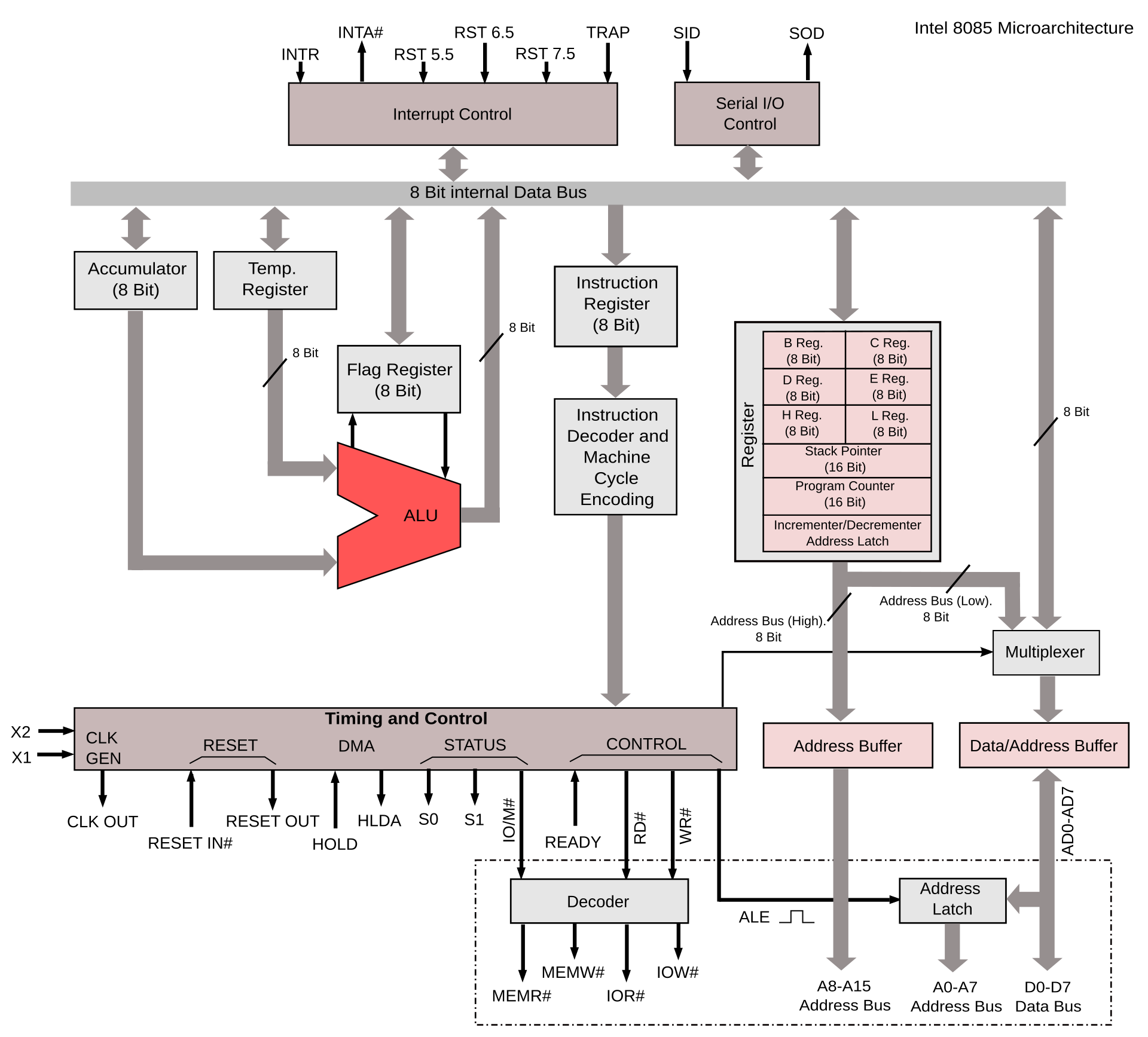

It is called an 8-bit microprocessor because its normal data paths were the 8 bit byte. However, the address lines were normally two bytes, 16-bits, so 65536 bytes (or 64 KiB) of memory was supported.
The 8085 was made possible by the increasing density of components etched and deposited into a single wafer of silicon in a photographically based process called VLSI, Very Large Scale Integration. Ever increasing numbers of transistors could be printed onto a single wafer. To create the 8085 6,500 transistors were required. The Intel i5, the CPU in the computer I was using when I started writing this page, has two billion transistors.
The addressing modes supported are,
PUSH ↧: *(--SP) = R
A pop increments the SP by two bytes, then loads the contents of that address
into the register pair R.
POP ↥: R = *(SP++)
In response to an electrical signal on the interrupt control lines, in collaboration with support chips, the next instruction at the PC is ignored and the instruction RST(n) is pushed into the data stream. The RST(n) is a call to memory location 8*n, for n equal to 0 through 7. As it is a call, the PC is pushed onto the stack,
*(--SP) = PC
PC = 0 // (or 8, 16, ... , 56 depending on n)
Typically the target of the RST is a jump instruction (JMP)
to code handling the interrupt at level n.
To later resume the interrupted instruction flow, the PC is popped off the stack,
and any interrupt mask bits are cleared.
PC = *(SP++)
Here is a brief look at the 8085 Instruction Set, so these concepts are made exact.
There are three resources to protect,
Privileged mode blocks certain instructions from executing unless the processor is in privileged mode. It also works with the virtual memory system so that addresses as named in an instruction are not the address in the RAM. There were more reasons to take this step than protection, but it did mean that a process could only access mapped addresses.
To enter privilege mode, an instruction was provided that trapped into the kernel at a specific, defined address. The kernel takes it from there to determine why it ended up in privilege mode. If it were to take an action on behalf of a user program, such as access to a disk.
Traps look like calls. Interrupts are a form of trap that occur not because of an instruction, but because of a hardware event. These also enter privileged more at a pre-determined address in the kernel, to service the hardware event.
A special return instruction returned from the trap that closed back down the privilege, simultaneous with the return to the user program.
While in privileged mode, an instruction is allowed that will drop the privilege. Entering privileged mode must be completely protected and under the entire control of the kernel.
Interrupts to service hardware must enter privileged mode, to carry out what is required by hardware. If it is an interrupt from the disk, it must be able to issues instructions to the disk to handle the interrupt. These service routines are the drivers, and are considered part of the kernel, so it is correct they share with the kernel the privilege mode. Therefore, among the processors responses to an interrupt, it will obtain privilege mode coincidentally with calling the service routine.
When a user program requires a privileged mode service, it mimics the interrupt by issuing a software-initiated interrupt, called a trap. As does the interrupt, the trap will force a call into the kernel, while at the same time obtaining privileged mode.
The response to a trap or an interrupt is completely under control of the kernel. Before enabling interrupts or starting a user mode process, the kernel places the addresses of interrupt and trap service routines in a table. This table is in memory inaccessible to any process but the kernel. The location of the table is installed into the interrupt handling mechanism using a privileged mode instruction. Once privilege mode is dropped, the response to an interrupt or trap cannot be modified. A user mode process is denied the hardware access necessary to manipulate the response.
As major conceptual and technical lead was made with the introduction of virtual memory. Virtual memory solved several problems,
The MMU is involved in every memory fetch to map a virtual address to a physical address. This map is done as a table lookup in tables called page tables. The operating system maintains the page tables and the MMU uses them automatically.
The mapping is entirely under the control of the operating system, whose code is in privileged memory, and working up page tables that are in privileged memory, so no memory can be access with the operating system permitting it. There will be separate page table for each process, and this effectively boxes a process into a memory space isolated from the memory space of other processes.
The MMU does not map byte-by-byte, but large ranges of bytes to large ranges of bytes. This cuts down the size of the page table. The i386 had already progressed to 32 bit addresses. Virtual memory for 16 bit processors never happened but if they had, this is how they might of worked.

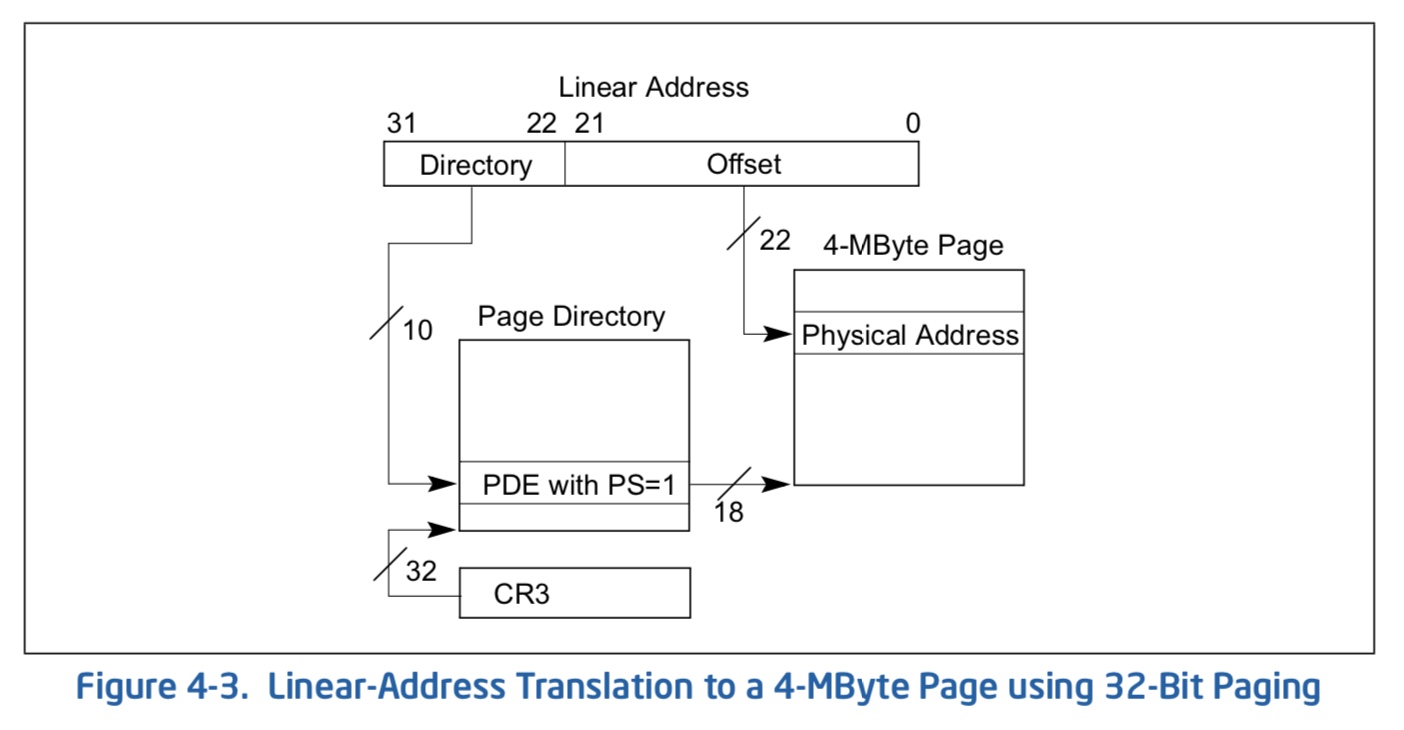

The following is an explanation of a fictitious MMU the 8085 never had. It is inspired however by the Page Size Extension method of the Intel Pentium Pro (schematic above).
A special MMU register is loaded with a physical address called the page table base B. A 16 bit virtual address V is separated into the top 7 bits of page number P and the lower 9 bits of offset O, such that V = P * 29 + O.
The MMU fetches the one byte page table entry E from the page table at physical address B+P. If the least significant bit of E is zero, the entry is not valid, and the MMU interrupts the processor. Else, the 7 top bits of E are copied to the 7 top bits of V, producing the mapped physical address.
When changing between processes or entering or leaving the kernel, reloading the page table base in the MMU installs the appropriate page table.
The 16 bit address is divided into the top 7 bits and the bottom 9 bits.
Because the page number is 7 bits there are 128 pages. Also the 64k physical memory is divided into 128 page frames. A page table fits into a page but having a 4 byte mapping for each of the 128 pages, working out exactly to 512 bytes for the table.
A MMU register is loaded with the half frame number of the page table. This would be an 8 bit register. The page number is multiplied by 2 (a left shift) and or'ed into the MMU register to provide the bottom 8 bits of a 16 bit physical address.
That 16 bit data word is fetched at this address and 7 of the 16 bits are extracted as the page frame where resides in physical memory for this virtual page.
The offset is or'ed into the frame as the lower 9 bits to form the physical address of the byte to fetch.
In fact, additions are simplified by having everything aligned at powers of two. Therefore rather than addition, all one does is replace zero's by the number.
Intel provides virtual memory space by segments that describe a range and a permission on the range. When in kernel mode the segment spans the entire 4G range. Moving between kernel and user, the segment is restricted to just the lower 3G. While different page tables map the lower 3G differently, they all map the upper 1G the same — that virtual memory region is that of the kernel.
Therefore, when running in the kernel the operating system can access the current user memory space as well as the kernel space in a single range. The kernel can swap between user spaces without affecting its access to the kernel space. It does however limit the user to only 3G of virtual memory.
The transition to or from privileged mode is accompanied by additional swaps of context. To provide complete protection of the kernel from the user process, interrupts and traps do not push onto the user's stack, nor use the user's page tables. Entry to privilege mode swaps in the kernel's stack and kernel's page tables just as exit from privilege mode restores the user's stack and page tables.
In the case of Intel, there is one interrupt stack per core that is activated when handling an interrupt. Each thread has its own kernel stack that is activated on exception by that thread.
Context switch:
The kernel resident stack, whether the interrupt or thread stack, can be completed to contain all registers of the CPU. In the case of the 8085, this means that the handler of the interrupt or trap will push the SP, BC, DE, HL and flags register. Note that the SP register must be interpreted using the page table of the interrupted or trapped process.
Also, the referents to the page tables, that which is installed into the MMU to activate the virtual-physical address mapping for this process, are pushed.
The contents of the stack can then be copied off in to a Thread Context Block (TCB) that is stored among other such TCB's in a linked list inside the memory space of the kernel. If a different TCP is selected to copy the saved registers into the interrupt or thread stack, the physical thread of the core will return into the process context and specific code execution of that thread — picking off where that computation left off.
This is called a context switch, and pre-emptive multiprocessing can be achieved by attaching such a context switch to the handling of a clock interrupt, say every tenth of a second, for a scheduling time quantum of one tenth of a second.
| |
+--------+
| b hi |
+--------+ assume sizeof(int)==2
| b lo |
+--------+
| a hi |
+--------+ assume sizeof(int)==2
| a lo |
+--------+ -+
| | |
| | |
+- s -+ > sizeof(struct S)
| | |
| | |
+--------+ -+
| PC hi |
+--------+ return address
SP --> | PC lo |
+--------+
| |
The stack after the call to f().
Note: a hypothetical API
struct S {
int len ;
int r[LEN] ;
} ;
struct S f(int a, int b) ;
int main(int argc, char * argv[]) {
struct S s ;
int a, b ;
s = f( a, b ) ;
return 0 ;
}
The convention by which subroutines pass arguments is called the
Application Binary Interface (ABI). Aspects of the ABI are arbitrary,
but all code must agree on the ABI to interoperate
The ABI described here will use the stack to pass all arguments and the return value. The arguments are pushed rightmost argument first, then the stack pointer is descended by the storage size of the return value, in this example, the number of bytes of struct S.
This ABI requires that the caller clean up the stack. When f returns, the old PC value is at the top of the stack, and is popped off into the PC register. The return value is conveniently on the top of stack, and is copied into s. The stack is then moved up by the total number of bytes of the parameters and return value,
SP += sizeof(struct S) + 2 * sizeof(int)
The compiler knows the default ABI for its platform, and compiles code consistent with the ABI's requirements. What I have shown is hypothetical. In the cdecl API, the caller would dynamically allocate a temporary struct on the heap, and pass a pointer to the struct as a hidden first parameter.
It is also common that the return value, if it fits into a CPU register, is returned by a register.
